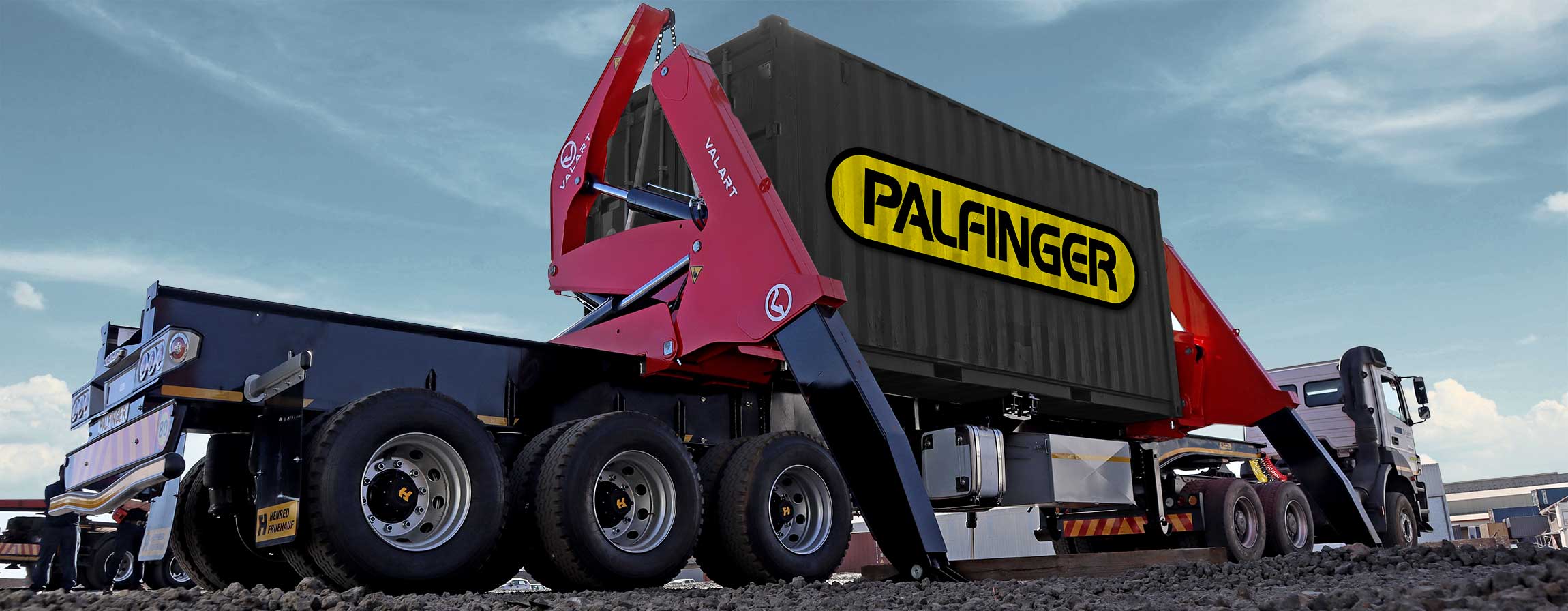

Valart SL17 Container Side Loader

BASIC SPECIFICATIONS:

  • Lift Capacity - 36 tons
  • 3,91 mt outreach
  • Power pack with 60 CV DEUTZ engine
  • Handles 20' to 40' containers
  • Look low line cranes, excellent design
  • Intermodal versatility
  • Road, off-road, double stacker
  • Road and rail transfer

CRANES:

  • One front and one rear, sliding hydraulic (between 20' and 40' ISO)
  • Made in high tensile steel with modern design developed with finite element analysis
  • Arms and the leg (one extension) to support the operation of lifting the container
  • Lifting capacity of 36 ton
  • High capacity hydraulic cylinder with double check valves and main control valves with smooth movements
  • DANFOSS control valves can either be operated manual or electric remote control (cable) and twist-locks
  • According to EN12999 standard
TRAILER SPECIFICATIONS

TECHNICAL SPECIFICATIONS:

  • Estimated Payload: Subject to change according to Truck and Trailer Combination Weight and Specification
  • Trailer Length: 13 600mm
  • Description: 13.6m Tridem Axle Chassis Trailer for Palfinger Swing lift

TECHNICAL SPECIFICATIONS:

  • Axle: FRUEHAUF® 1910, 146mm round gollow beam 90mm diameter journal with interchangeable inner and outer bearings equipped with 420x180 ‘S’ cam brakes
  • Suspension: 10 Ton Weweler Air Suspension
  • Braking System: WABCO HYBRID  ABS Brake System, in accordance with SABS, designed to meet higher brake regulations.
  • Landing Legs: FRUEHAUF, two speed HEAVY DUTY square leg, rubber cushioned foot, braced to withstand loading from any angle. Near side operation
  • Lights and Wiring: DIN 7 pin socket, 24 volt system, dual LED combination stop, tail and separate indicator lights, according to SABS specifications.
