TAIL LIFT MODELS

Successful production and marketing of PALFINGER MBB tail lifts has been ongoing for over 50 years now. Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.

With more than 40 products, PALFINGER caters for weight classes between 500 kg and 4,000 kg. The service network with blanket coverage guarantees unrestricted and optimum service for each and every customer. The most important fields of application include: food and transport logistics, waste management, emergency services and local authorities as well as leasing and rental business.

MBB C 1000 L

Specifications

  •   Lifting Capacity: - 1000 kg @ 600 mm load centre
  •   Platform Construction: - Steel
  •   Platform Width: - 2200mm
  •   Platform Depth: - 1500mm
  •   Dead Weight: - 357kg
  •   Control: - External, 4 Button Control and 3 Button Hand Control and Wander Lead

For the Environment

  • No environmentally harmful hydraulic oil

  • Electromechanical drive

  • Lower CO2 emissions

  • Efficient use of energy

  • Less noise emission

FOR COST SAVINGS

  • More maintenance-free components

  • No oil change and no need for replacement of valves/seals

  • Fewer maintenance intervals and thus lower maintenance costs

  • Extended warranty period: four years

  • Low total cost of ownership (TCO)

FOR THE OPERATOR

  • Simple operation thanks to proven operating elements

  • Consistent level of performance

  • Constant performance, even in the cold (-25°C to +60°C)

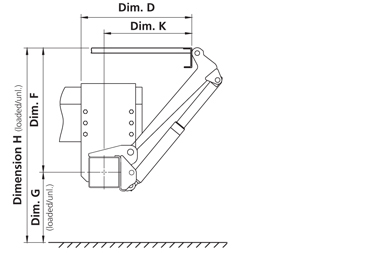

Dimensions

Lift arms (in mm):

600

H (max.) Loading height unloaded:

1100

H (min.) Loading height loaded:

750

F (max.) Middle of main beam to upper edge of loading floor:

620

K (min.) at dimension F (max.):

467

D (min.) Installation space (min.):

617

D (max.) Installation space (max.):

802

F (min.):

420

K (max.) at dimension F (min.):

652

CLICK HERE TO DOWNLOAD THE MBB C 1000 L BROCHURE

MBB C 1500 L

Specifications

  •   Lifting Capacity: - 1 500 kg @ 600 mm load centre
  •   Platform Construction: - Steel
  •   Platform Width: - 2400mm
  •   Platform Depth: - 1500mm
  •   Dead Weight: - 510kg
  •   Control: - External, 4 Button Control and 3 Button Hand Control and Wander Lead

  • The lightweight tail lift for a high payload capacity

  • 1,500 kg lifting capacity with 600 mm load distance

  • Design with aluminium or steel platform

  • Wide range of special equipment available

Dimensions

Lift arms (in mm):

700

900

H (max.) Loading height unloaded:

1256

1546

H (min.) Loading height loaded:

906

998

F (max.) Middle of main beam to upper edge of loading floor:

728

894

K (min.) at dimension F (max.):

515

627

D (min.) Installation space (min.):

665

777

D (max.) Installation space (max.):

860

1036

F (min.):

529

625

K (max.) at dimension F (min.):

710

886

CLICK HERE TO DOWNLOAD THE MBB C 1500 L BROCHURE

MBB C 2000 S

Specifications

  •   Lifting Capacity: - 2000kg @ 1000mm load centre
  •   Platform construction: - Steel
  •   Platform Width: - 2500mm
  •   Platform Depth: - 1800mm
  •   Dead Weight: - 625kg
  •   Control: - External, 4 Button Control and 3 Button Hand Control and Wander Lead

  • The powerhouse for professional goods distribution

  • 2,000 kg lifting capacity with 1,000 mm load distance

  • Design with aluminium or steel platform

  • Large selection of optional equipment available

Dimensions

Lift arms (in mm):

1000

H (max.) Loading height unloaded:

1651

H (min.) Loading height loaded:

950

F (max.) Middle of main beam to upper edge of loading floor:

977

K (min.) at dimension F (max.):

721

D (min.) Installation space (min.):

871

D (max.) Installation space (max.):

1190

F (min.):

569

K (max.) at dimension F (min.):

1041

CLICK HERE TO DOWNLOAD THE MBB C 2000 S BROCHURE

MBB F 1500 L

Specifications

  •   Lifting Capacity: - 2000 kg @ 1000 mm load centre
  •   Platform construction: - Steel
  •   Platform Width: - 2500mm
  •   Platform Depth: - 1800mm
  •   Dead Weight: - 625kg
  •   Control: - External, 4 Button Control and 3 Button Hand Control and Wander Lead

  • The lightweight tail lift for a high payload capacity

  • 1,500 kg lifting capacity with 600 mm load distance

  • Design with aluminium or steel platform

  • Wide range of special equipment available

Dimensions

Lift arms (in mm):

900

H (max.) Loading height unloaded:

1420

H (min.) Loading height loaded:

1080

F (max.) Middle of main beam to upper edge of loading floor:

850

K (min.) at dimension F (max.):

812

D (min.) Installation space (min.):

K+340

F (min.):

680

K (max.) at dimension F (min.):

970

G (max.) Unloaded (middle of main beam to ground):

570

G (min.) loaded:

400

E (max.) Vehicle frame width (max.):

980

E (min.) Vehicle frame width (min.):

650

CLICK HERE TO DOWNLOAD THE MBB F 1500 L BROCHURE

EDL 60

Specifications

  •   Lifting Capacity: - 590kg
  •   Platform construction: - Steel
  •   Platform Width: - 1320mm
  •   Platform Depth: - 838mm
  •   Dead Weight: - 185kg

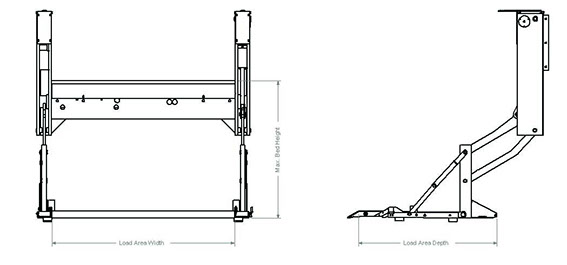

  •   Min – Max Deck Height: - 650mm – 970mm
  •   Control: - External seated lever control
Palfinger liftgates are a cost-efficient market leader in 1,000 - 1,600lbs light-medium sized truck market. Reliability and versatility are offered with liftgates in both cable and direct lift styles for general transportation and the municipal sector. Palfinger liftgates are multi-functional workhorses in the standard design or fitted with some of our many options.

STANDARD FEATURES

  • Quick-release sure-hold safety locks keep gate secured in stored position

  • Maintenance-free self-lubricating bushings at all pivot points and large pulleys for reduced cable wear

  • Aircraft industry grade galvanized lift cables for longevity and strength

  • All hydraulics and key electrical connections are enclosed and protected from dirt and moisture

  • Tapered tip platform for easier and faster loading. (excluding Double Eagle models)

  • Standard treadplate platforms ensure better traction

  • Liftgate does not extend below the chassis frame, allowing for receiver type hitch use

  • Toggle switch controls on all models

  • Standard 150 AMP circuit breaker to protect liftgate and your vehicle from damage should a malfunction occur

OPTIONAL FEATURES

  • Rhino Linings' Tuff Stuff ® Polyurethane

  • Zinc Electroplating

  • Aluminum platform

  • Lighting kits

  • Remote push button control

  • Fold out extensions

CLICK HERE TO DOWNLOAD THE EDL 60 BROCHURE

PLR 30

Specifications

  •   Lifting Capacity: - 1360kg @ 600mm load centre
  •   Platform construction: - Steel
  •   Platform Width: - 2032mm
  •   Platform Depth: - 1370mm
  •   Dead Weight: - 375kg
  •   Control: - External seated lever control

BUILT IN STANDARD/SAFETY FEATURES

  • Single cylinder with hydraulic lock on cylinder port

  • Cab shut off switch

  • Dual torsion system for assisted folding on 1219mm platform

  • Flush mounted hinges for pallet and cart-friendly operation


HEAVY DUTY CONSTRUCTION

  •   Bushings & zerks at all pivot points
  •   Oversized quality components
  •   Heat treated pins
  •   150 AMP circuit breaker
  •   Nylon roller for easy opening
  •   Thermo protected PowerPack pre-installed, wired and filled with premium multi-temp hydraulic fluid

CLICK HERE TO DOWNLOAD THE PLR 30 BROCHURE
