Lifting solutions for Africa




Scrap Handling Grabs

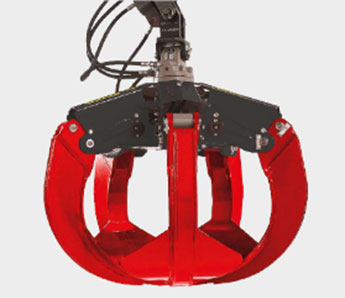

PZG180PH5

  •   Number of tines:  5
  •   Volume (liters):  180
  •   Opening Max. A (mm):  1450
  •   Width D closed (mm):  1070
  •   Height B with rotator (mm):  850
  •   Load capacity (kg):  2000
  •   Closing force (kN):  12
  •   Self Weight w/o rotator (kg):  305
PZG180PH5
PZG240PH5

PZG240PH5

  •   Number of tines:  5
  •   Volume (liters):  240
  •   Opening Max. A (mm):  1720
  •   Width D closed (mm):  1125
  •   Height B with rotator (mm):  985
  •   Load capacity (kg):  2000
  •   Closing force (kN):  11
  •   Self Weight w/o rotator (kg):  340

PZG500PH5

  •   Number of tines:  5
  •   Volume (liters):  500
  •   Opening Max. A (mm):  2155
  •   Width D closed (mm):  1320
  •   Height B with rotator (mm):  1350
  •   Load capacity (kg):  3000
  •   Closing force (kN):  13
  •   Self Weight w/o rotator (kg):  595
PZG500PH5

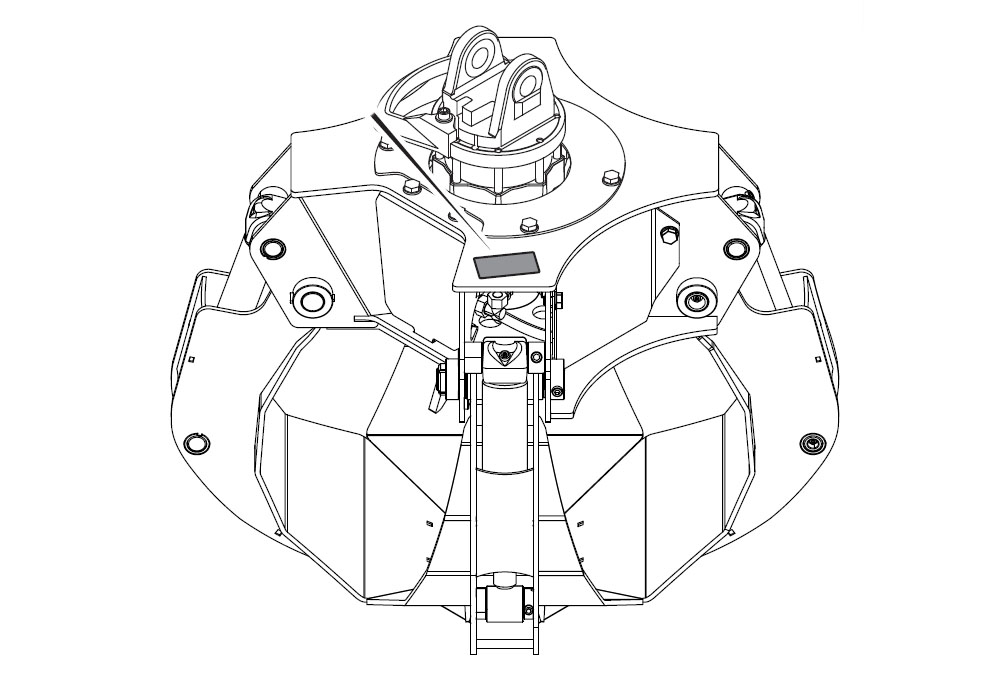

SG204

SG204

  •   Number of tines:  4
  •   Volume (liters):  200
  •   Opening Max. A (mm):  1430
  •   Width D closed (mm):  1050
  •   Height B with rotator (mm):  815
  •   Load capacity (kg):  2000
  •   Closing force (kN):  N/A
  •   Self Weight w/o rotator (kg):  270
SG256

SG256

  •   Number of tines:  56
  •   Volume (liters):  250
  •   Opening Max. A (mm):  1430
  •   Width D closed (mm):  1050
  •   Height B with rotator (mm):  830
  •   Load capacity (kg):  2500
  •   Closing force (kN):  N/A
  •   Self Weight w/o rotator (kg):  377

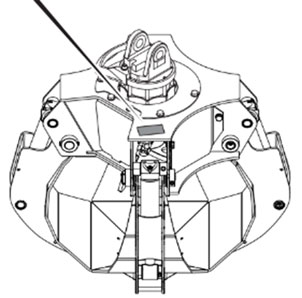

SG304

  •   Number of tines:  4
  •   Volume (liters):  300
  •   Opening Max. A (mm):  1650
  •   Width D closed (mm):  1115
  •   Height B with rotator (mm):  835
  •   Load capacity (kg):  2500
  •   Closing force (kN):  N/A
  •   Self Weight w/o rotator (kg):  362
SG304
